STATIC LINEAR AND P-DELTA ANALYSIS
In the latest version of SAFI, the user is now able to animate various static linear
and P-Delta analysis results
such as the:
Animating the envelopes helps minimizing the amount of information on the screen. The user can focus on the most critical regions of the model.
ANIMATION FOR A BRIDGE MODEL

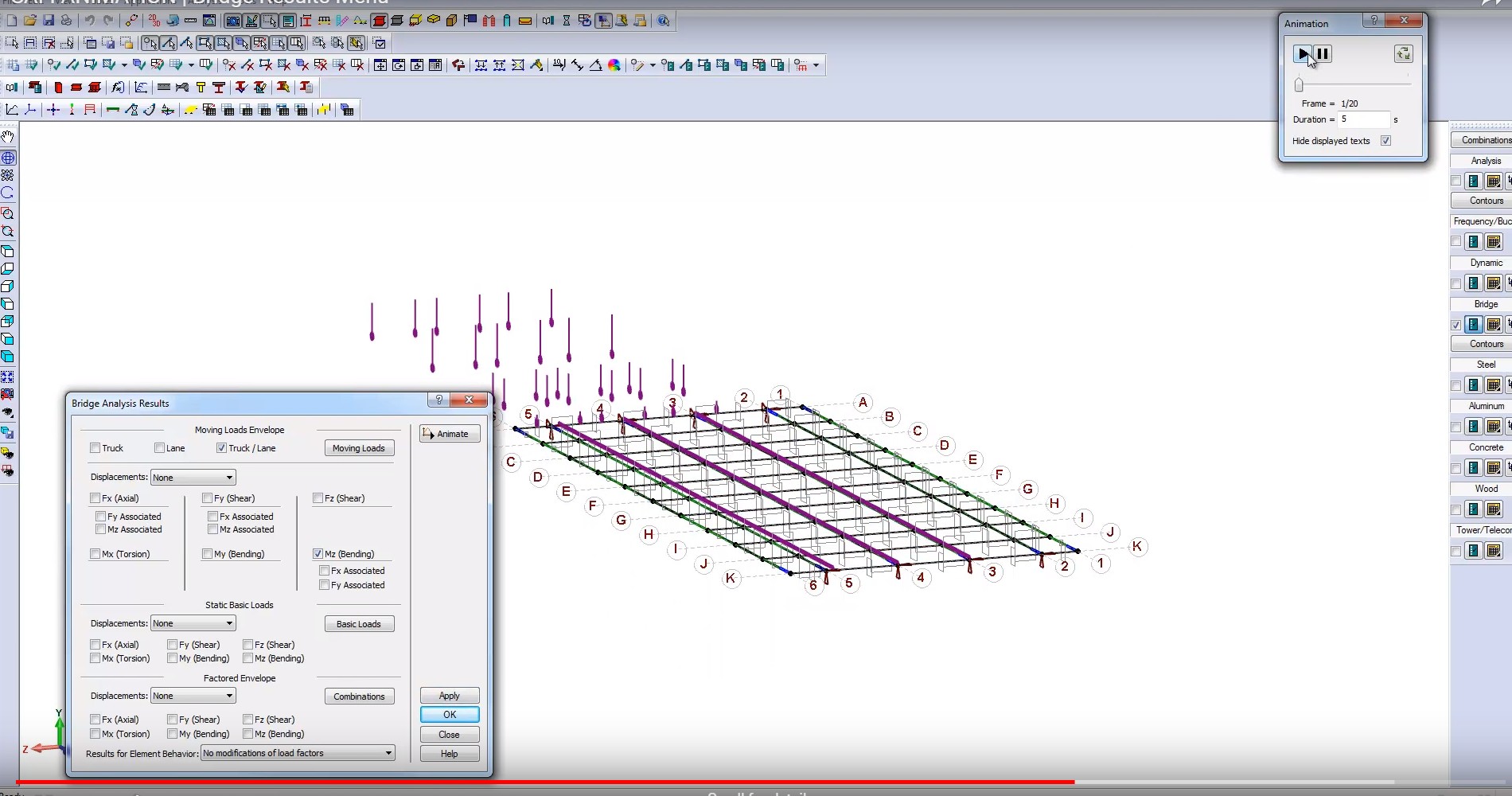

In the bridge results menu, animating the envelopes helps minimizing the amount of information on the screen. The user can focus on the most solicited regions of the model. As the animation evolves, the final results are displayed and the global envelopes are displayed.
FREQUENCY & BUCKLING
The frequency and buckling analysis provide multiple mode shapes describing multiple behaviors of the structure. With large models, the animation is helpful to discern and understand the mode shapes. It is easier to determine if the buckling mode is a local or global phenomenon. It also provides a very accurate interpretation of the participating mass of each mode in a seismic spectral analysis.

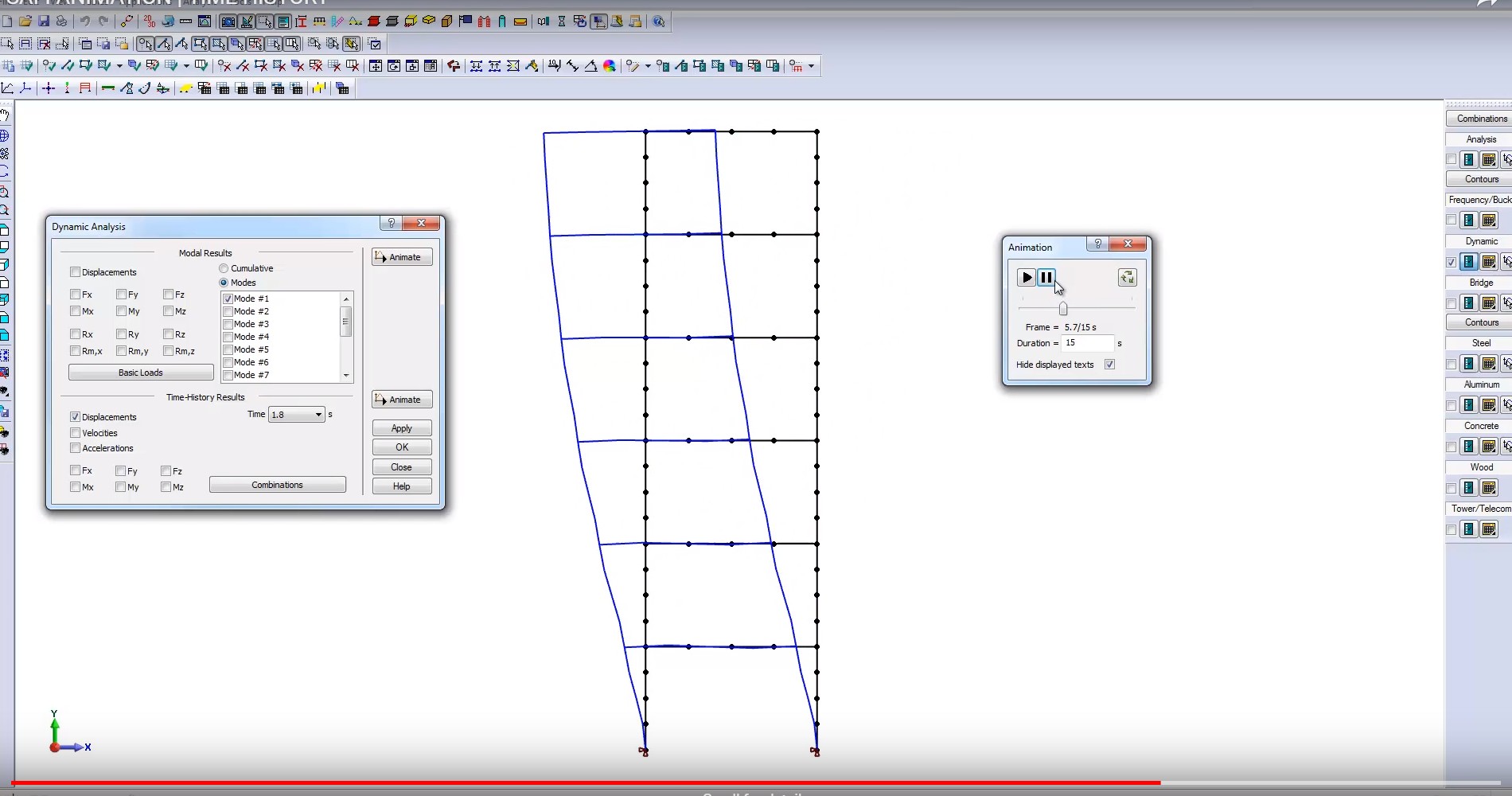

The animation function displays every saved time-step to provide an accurate representation of the displacements, velocities, accelerations and internal forces acting on the structure.
This will provide the user a better understanding of the structure behavior during the dynamic event, such as finding the critical time of the dynamic loading.
